AUTOMATION TIP TIG

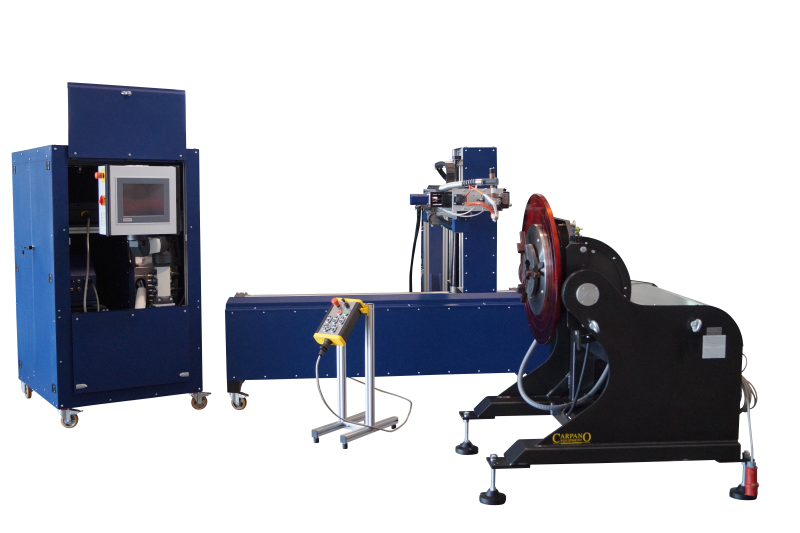

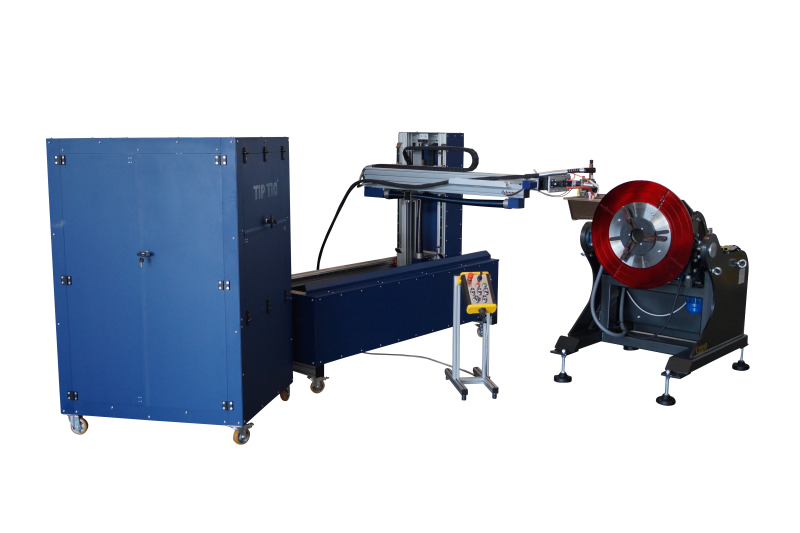

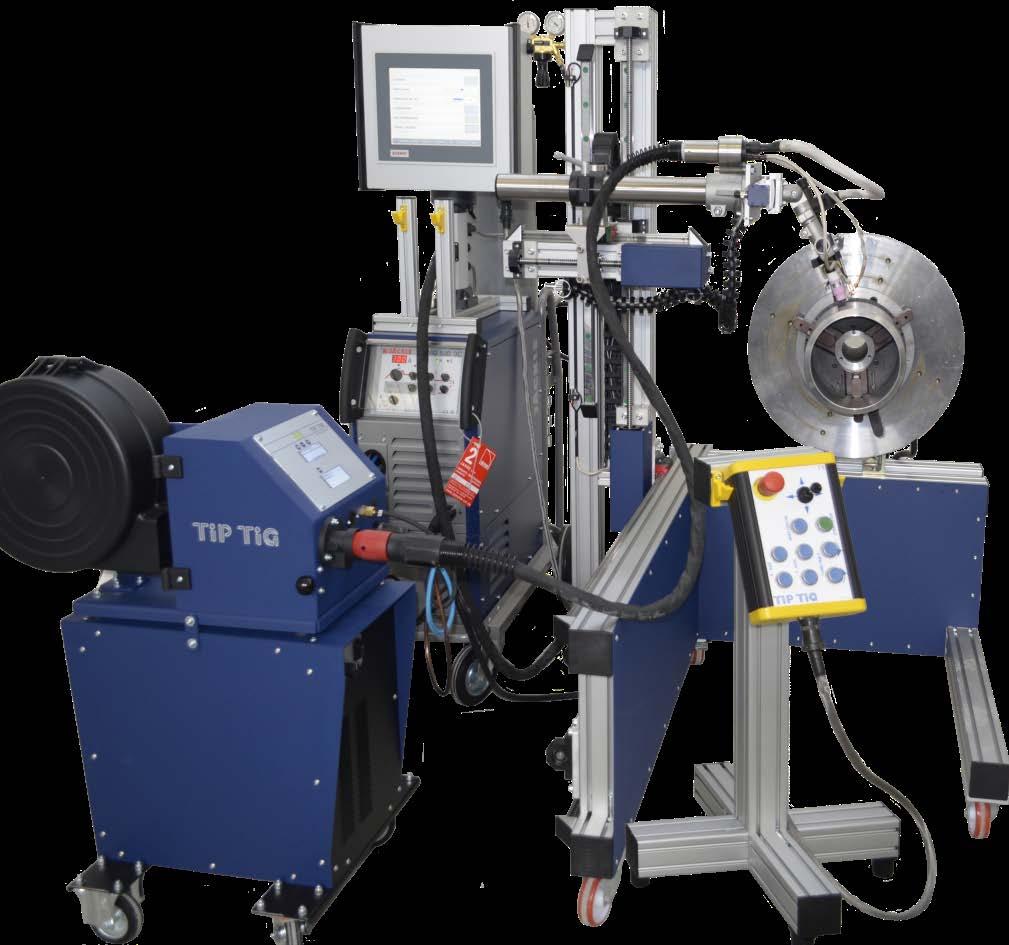

TIP TIG BECKHOFF PLC w/ 12″ Touch Screen Interface.
Programs include:

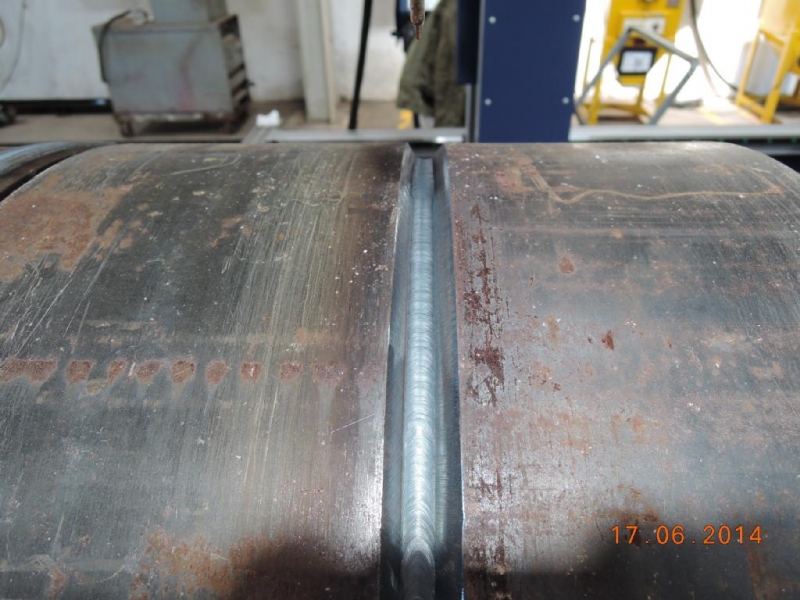

PIPE TO PIPE

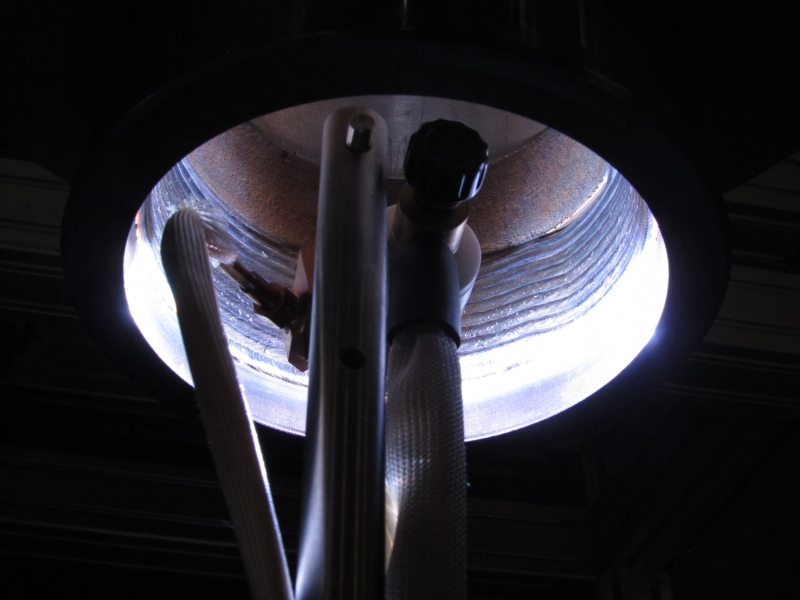

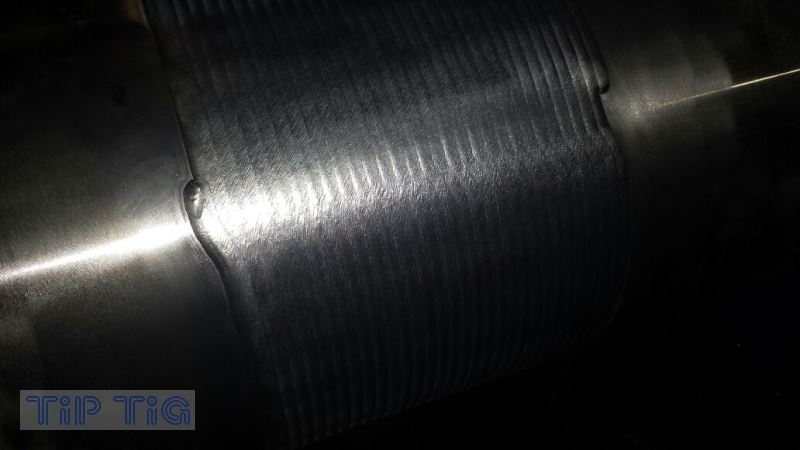

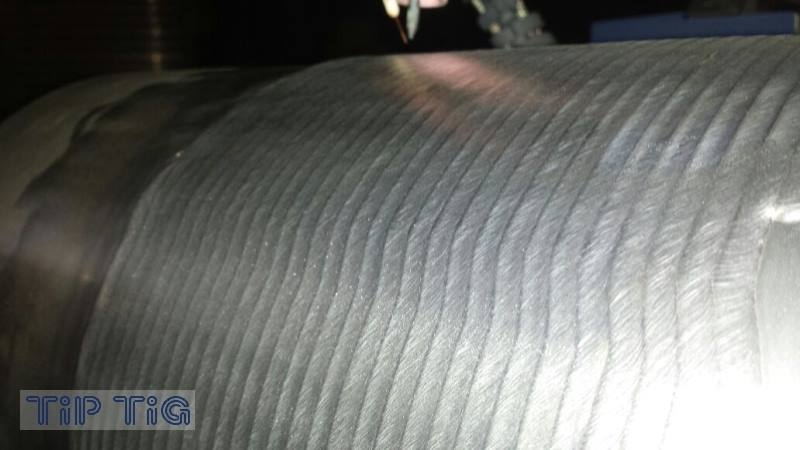

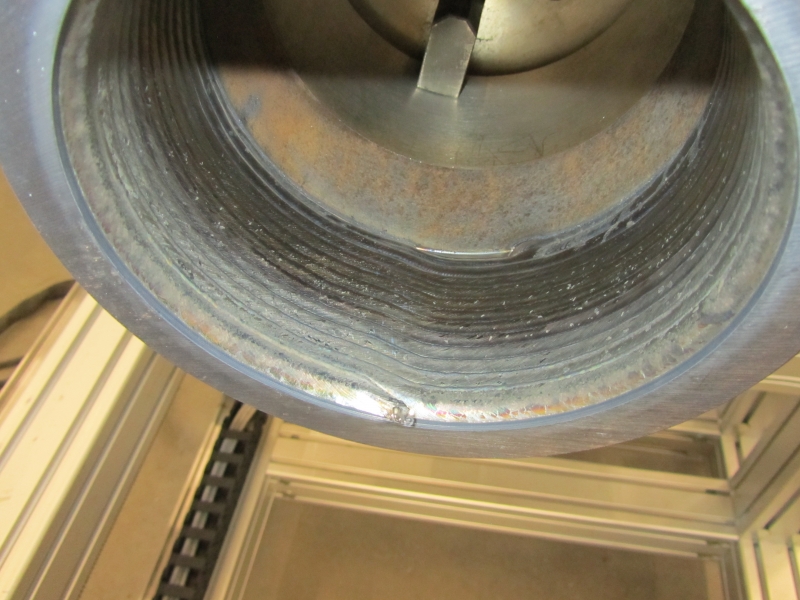

PIPE CLADDING ID / OD
LONGITUDINAL SEAM WELDING
Included Features:
Arc Voltage Control, Auto Electrode Adjustment, Oscillation, Single Layer.
TIP TIG AUTOMATION Feeder.
TIG 500iDC/160HW Built in.
Alum Construction with 80x80mm Beams.
Overall Size 2150 x 1000 x 1700mm.
Heavy Duty Linear Guides with ballscrew.
X-Axis Planetary 20Nm Stroke 1400mm
Y-Axis Planetary 20Nm Stroke 500mm
Z-Axis Planetary 20Nm Stroke 900mm
High Precision Oscillation Slides w/ Ballscrew Stroke 100mm
AUTO Torch Holder with Micro Nozzle Adjustment X-Y-Z Axis
TIP TIG Rotator 500 kg Hollow Shaft 200mm w/ Encoder
Rotation Torque 1000Nm.
Tilt Torque 2000Nm.
Speed Range .05 to 2 RPM
TIP TIG Automation Torch 4.25
TIP TIG Remote Control
