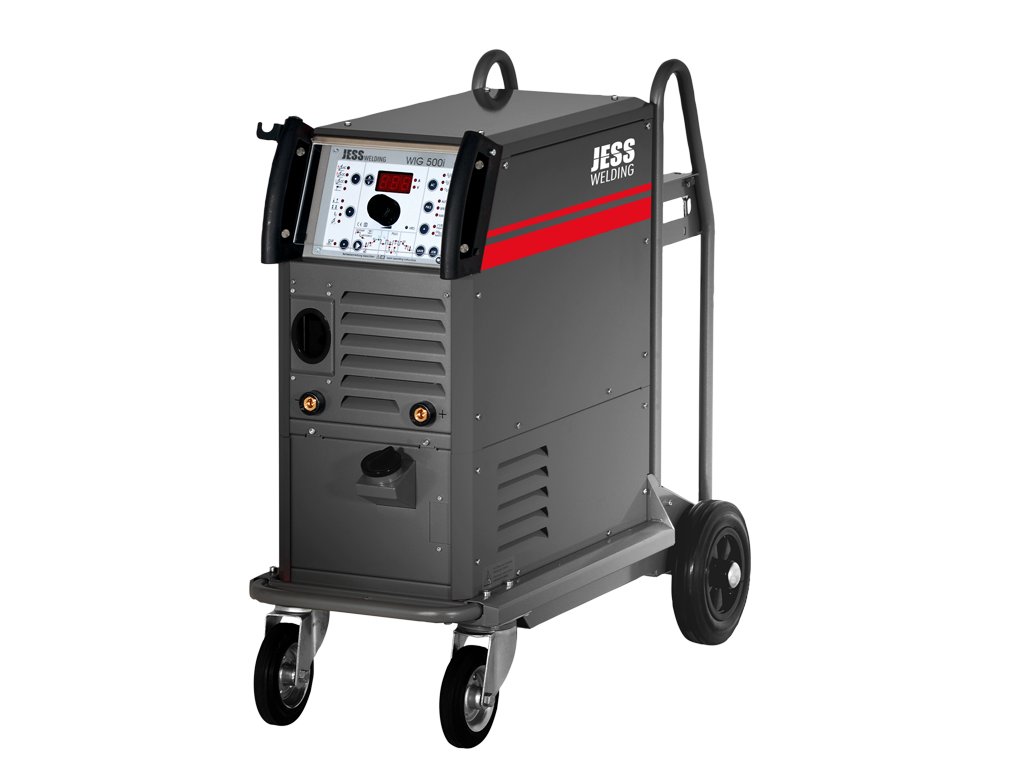

ProTIG 500 AC/DC JESS

TIG 500i AC / DC JESS

MADE IN GERMANY
3 YEARS WARRANTY

Advantages and features
Welding current continuously adjustable from 5 to 500 amps
Safe burner connection inside the device
digital current display, current I, current II and S-test function
Forced shutdown if the arc does not ignite in 2- and 4-stroke cycles
electronic inrush current damping
TIG ignition via HF or via the lift-arc function
Control functions
2/4 cycle, current I and II, pulses adjustable, 0.5 Hz to 5 kHz, automatic pulse, current start value, current rise, current decrease, waveform (square, sine), balance adjustable, end crater filling current, end current value, hot start adjustable, arcforce adjustable , Antistick, jobs can be saved
Up / Down burner for setting on the burner
Automatic error diagnosis display
VRD Volt Reduced Device - Reduced welding voltage
Protection of the control by disc
fully insulated handle
Temperature-controlled fan
Thermal overload protection
Remote control socket for foot and handheld remote control
Additionally with the AC / DC version: Infinitely adjustable alternating current frequency, balance, wave form: sine, square, square with DC component and triangle
Options
Automatic TIP for one-button torch to switch between current I and current II
higher ED due to a stronger fan
Automation interface

Technical data:	ProTIG 500i AC / DC
Mains voltage	400 V
Fuse slow	32 A
TIG setting range	3 - 500 A
Open circuit voltage	14-72 V
Duty cycle 60% TIG / manual	440 A / 350 A
Duty cycle 100% TIG / manual	3800 A / 220 A
Protection class	IP 23 S
Power consumption	26kVA
Dimensions with trolley L x W x H (mm)	1050 x 540 x 970
Weight	54 kg
